Reflective Identification Markers

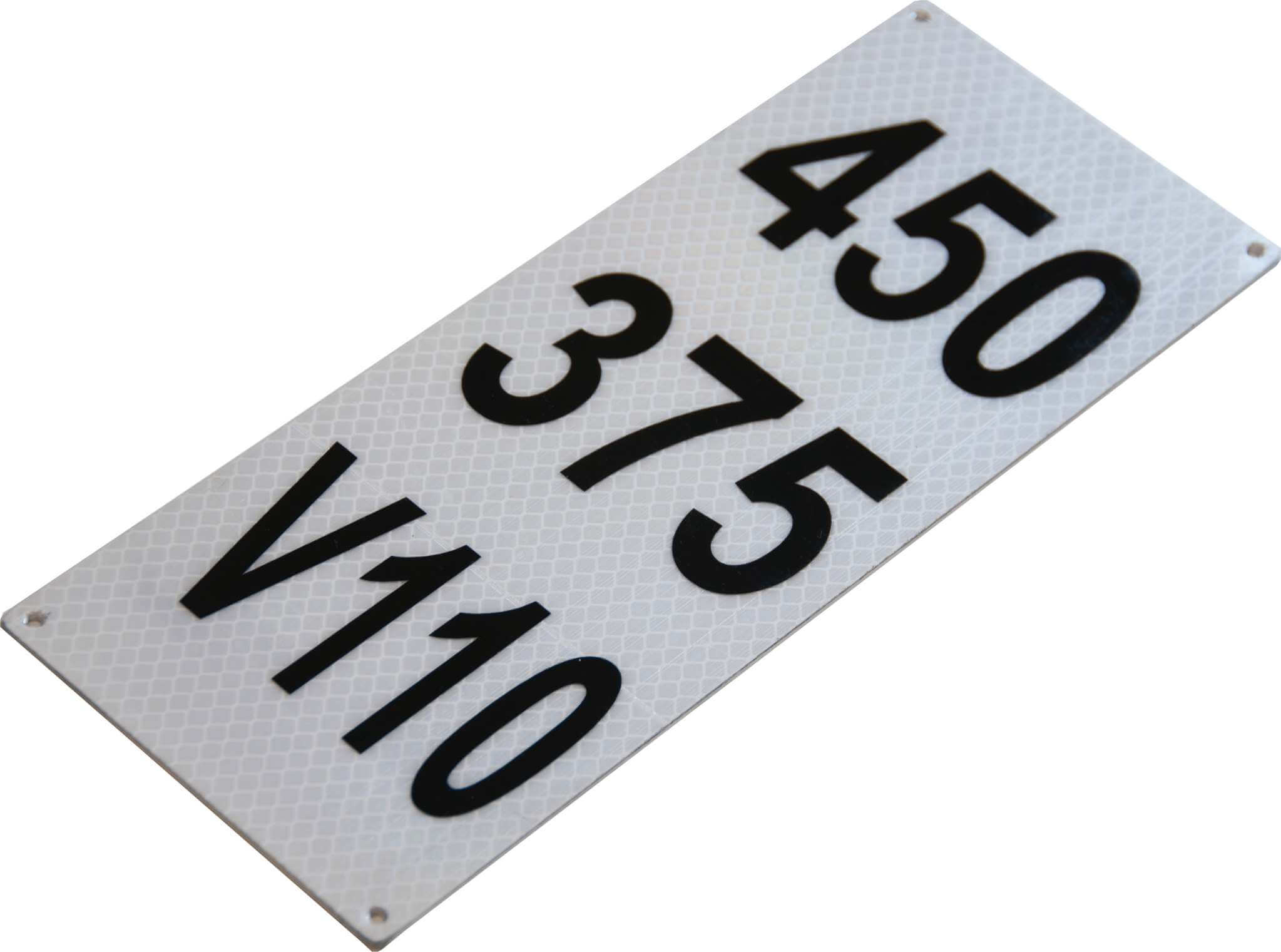

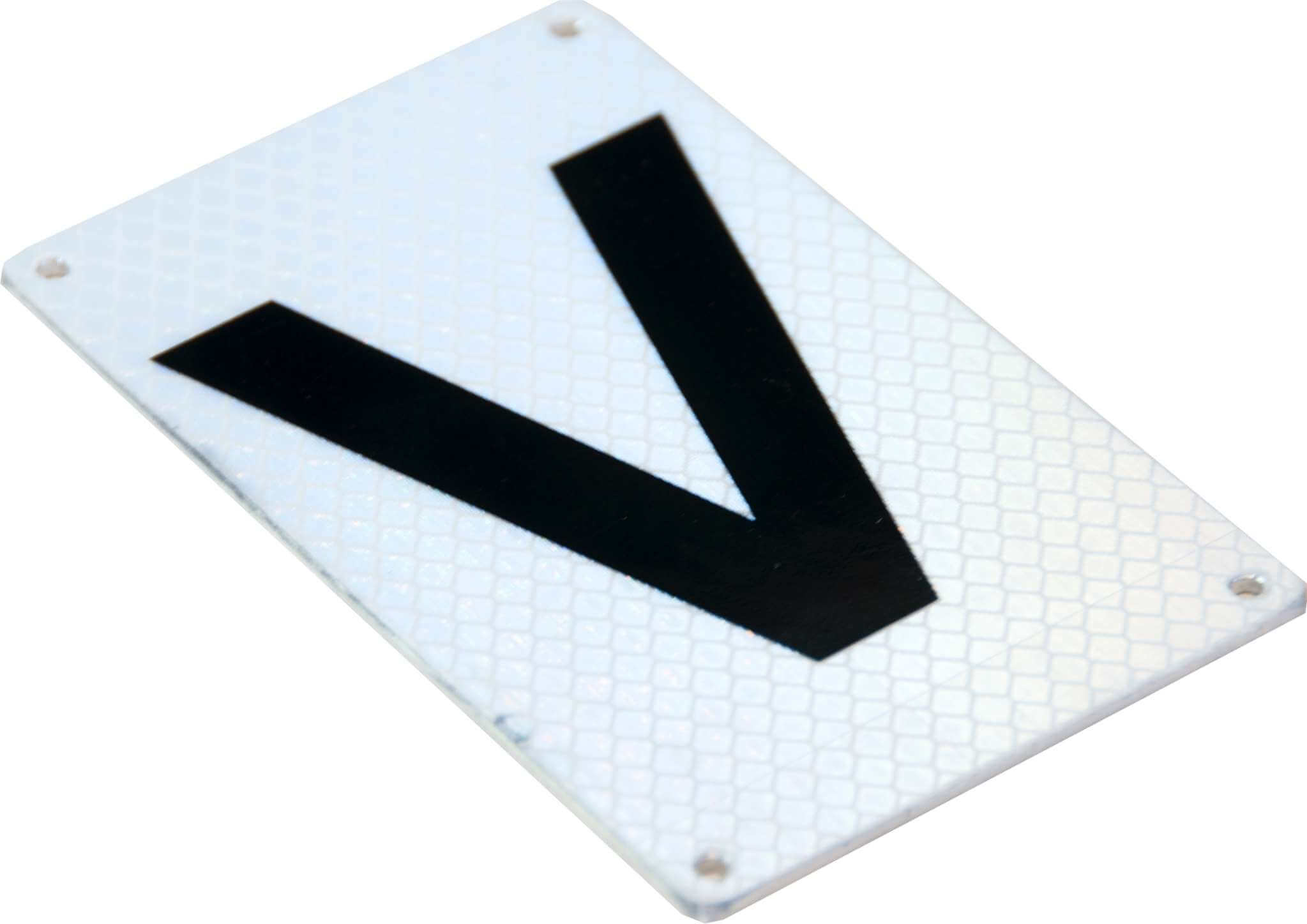

HTD Kerbmarkers Reflective Marker Plates are 2mm thick Aluminium Plates with a Super-high efficiency, full cube retro-reflective sheeting designed to have the highest retro-reflective characteristics and perfect for the production of traffic control signs, delineators and Valve/Hydrant marker plates.

With a pressure sensitive permanent acrylic adhesive (Diamond Grade Reflective) and Black permanent high performance vinyl for lettering/numbering, our plates have a superb UV, humidity and salt spray resistance. This making them the ideal choice for most external applications, with up to 7 year external Weathering durability.

Fixing Spikes can also be included upon request.

Marker Plate Codes

KerbFacilityKerbFacility

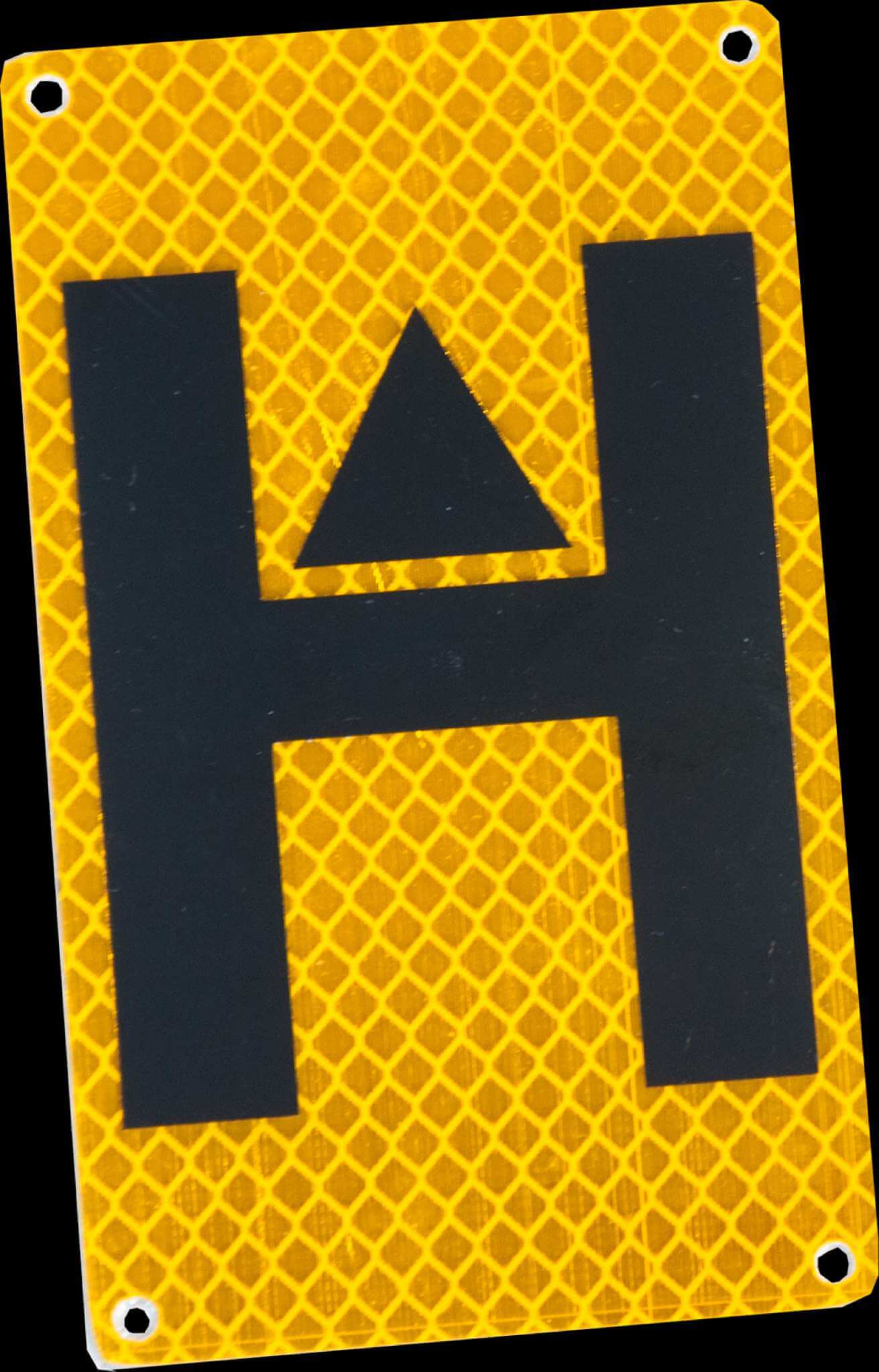

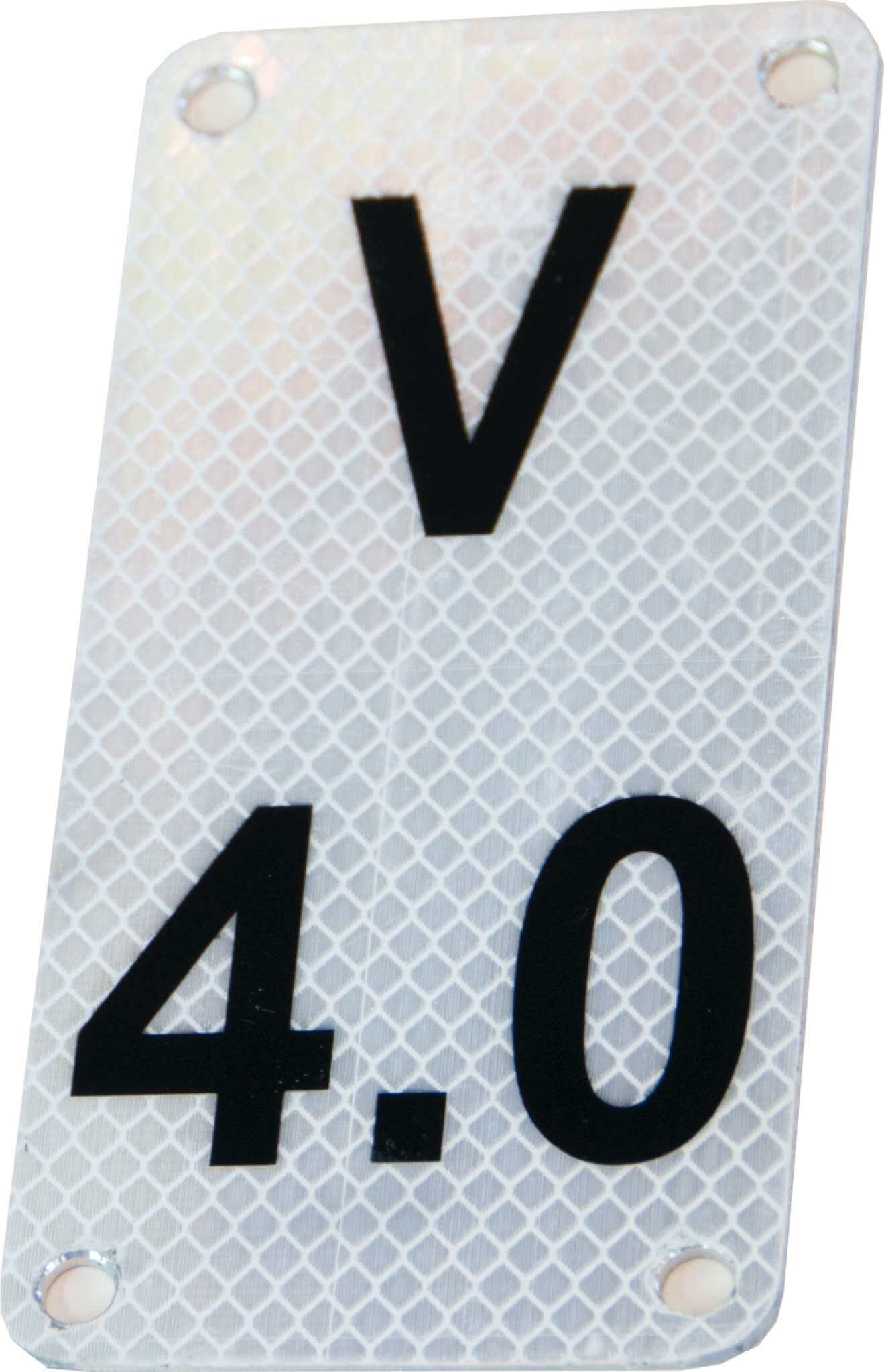

HHydrantVValve

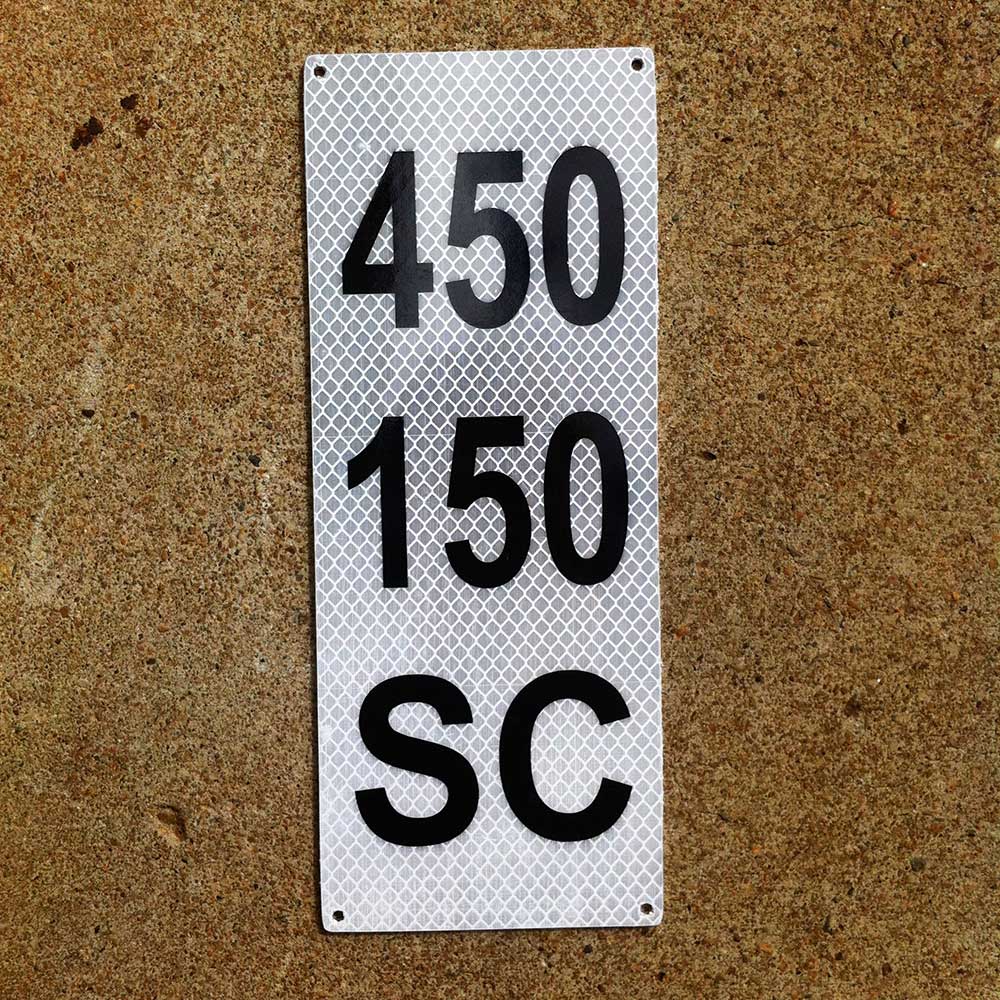

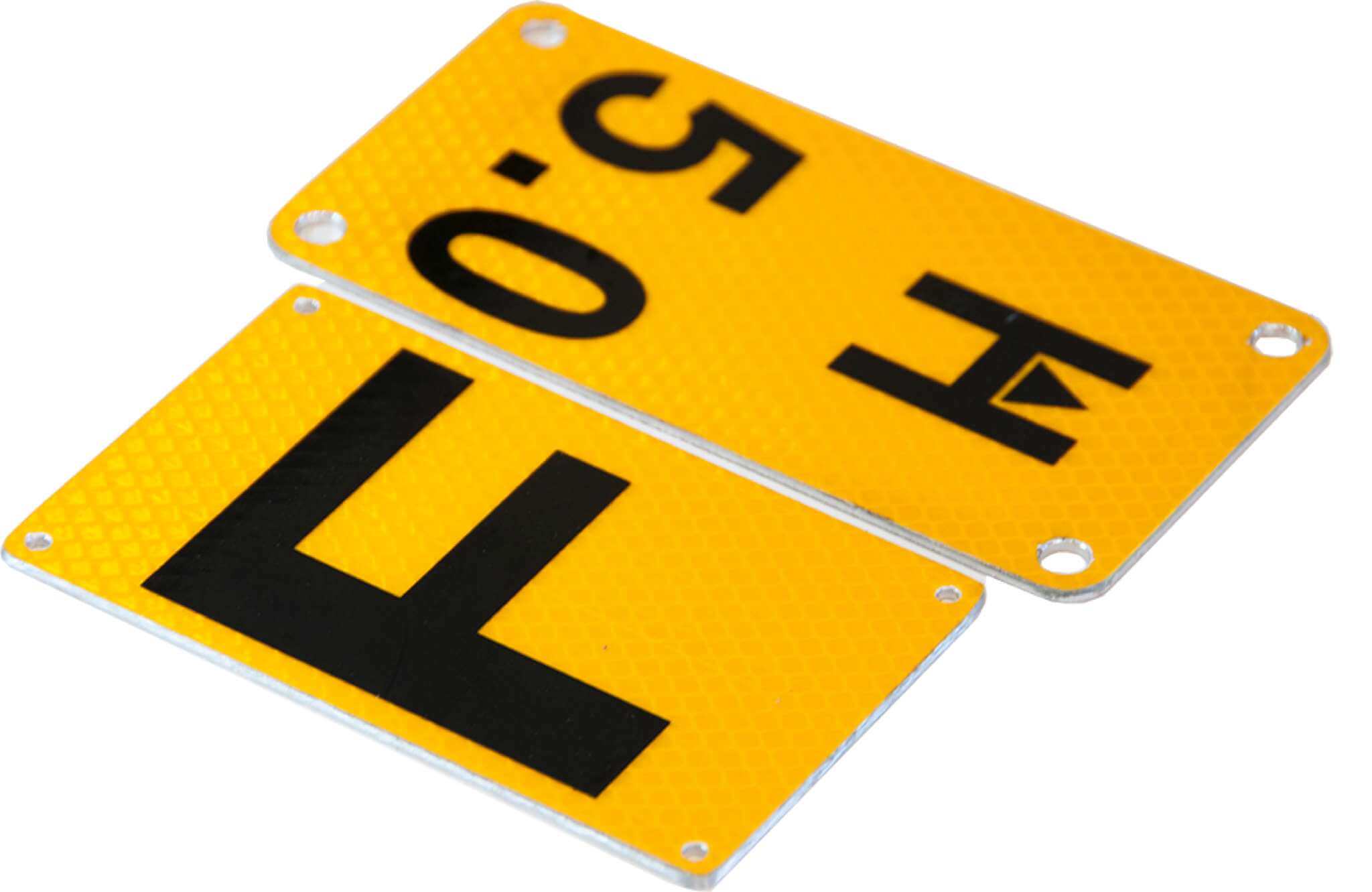

FFluching PointSCSwabbing Chamber

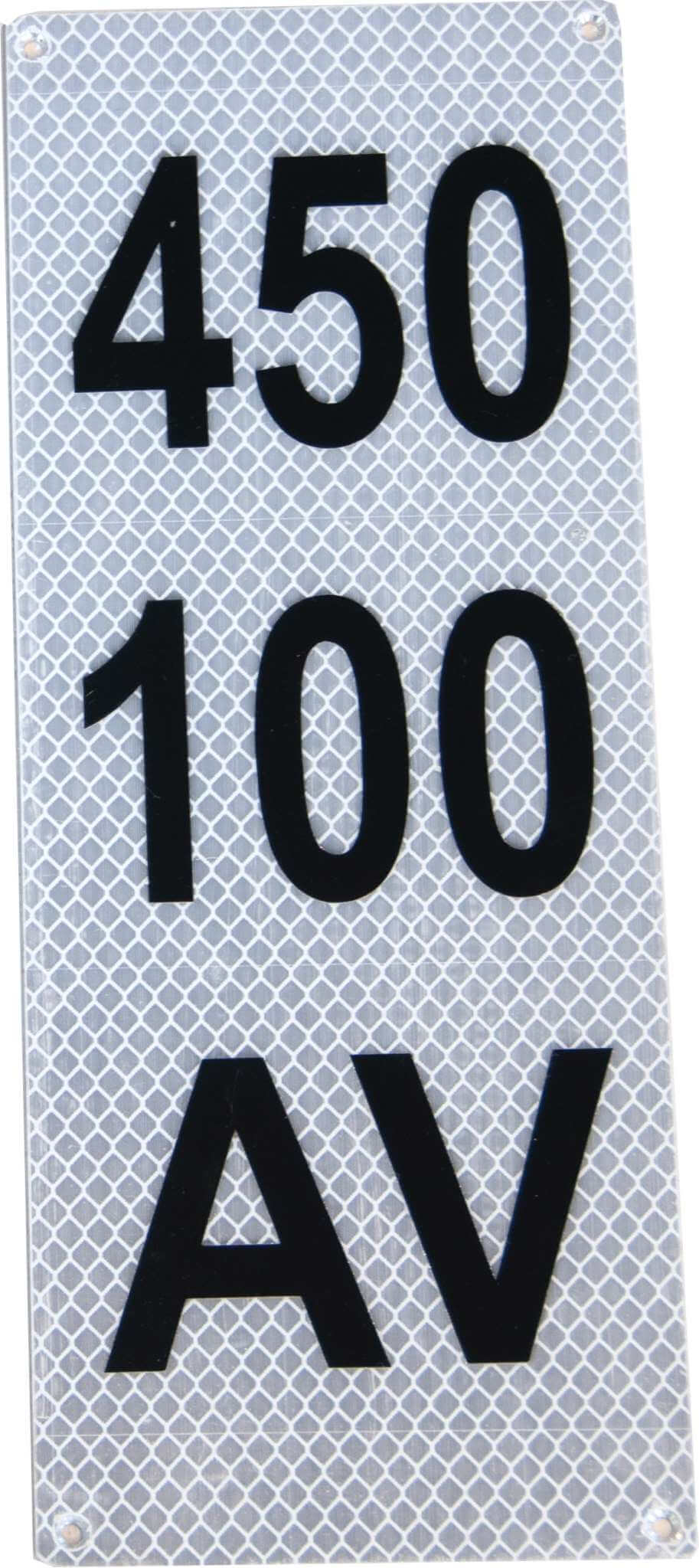

AVAir ValveHLHigh Level Main

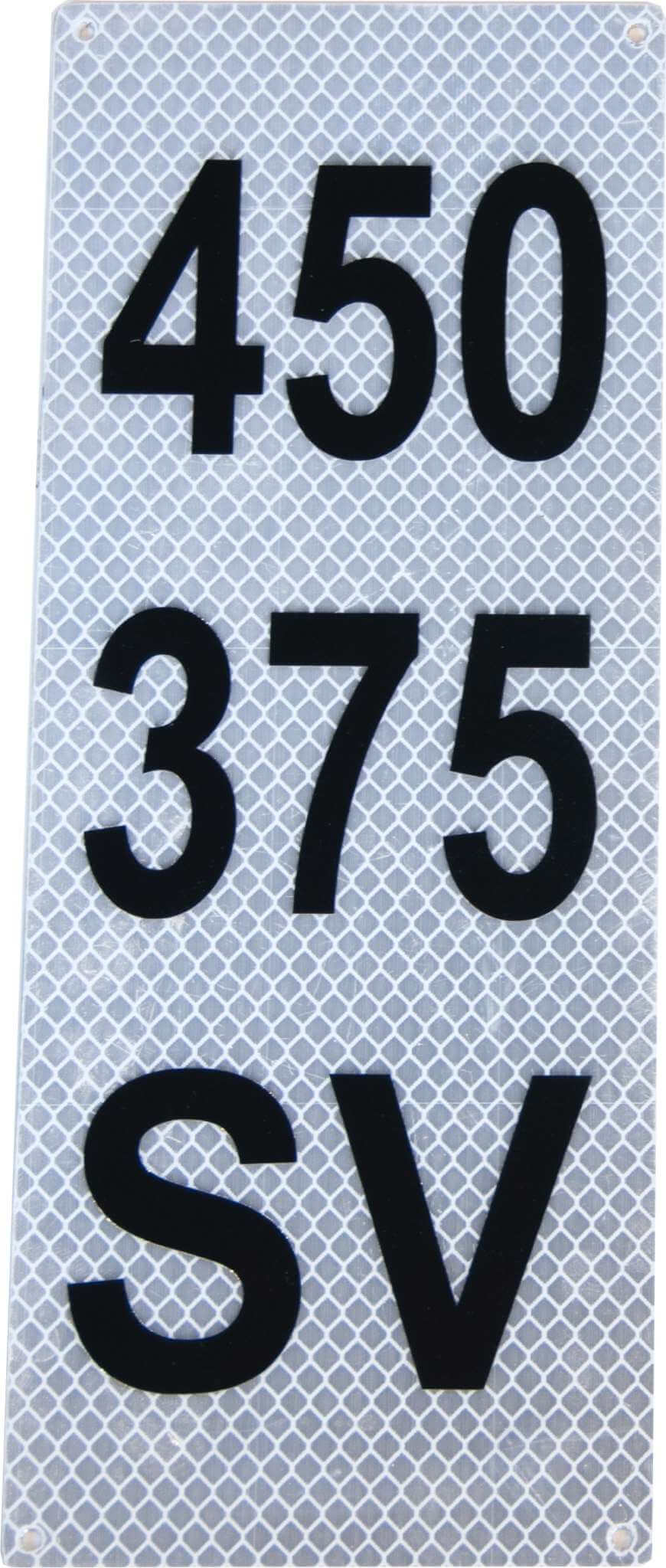

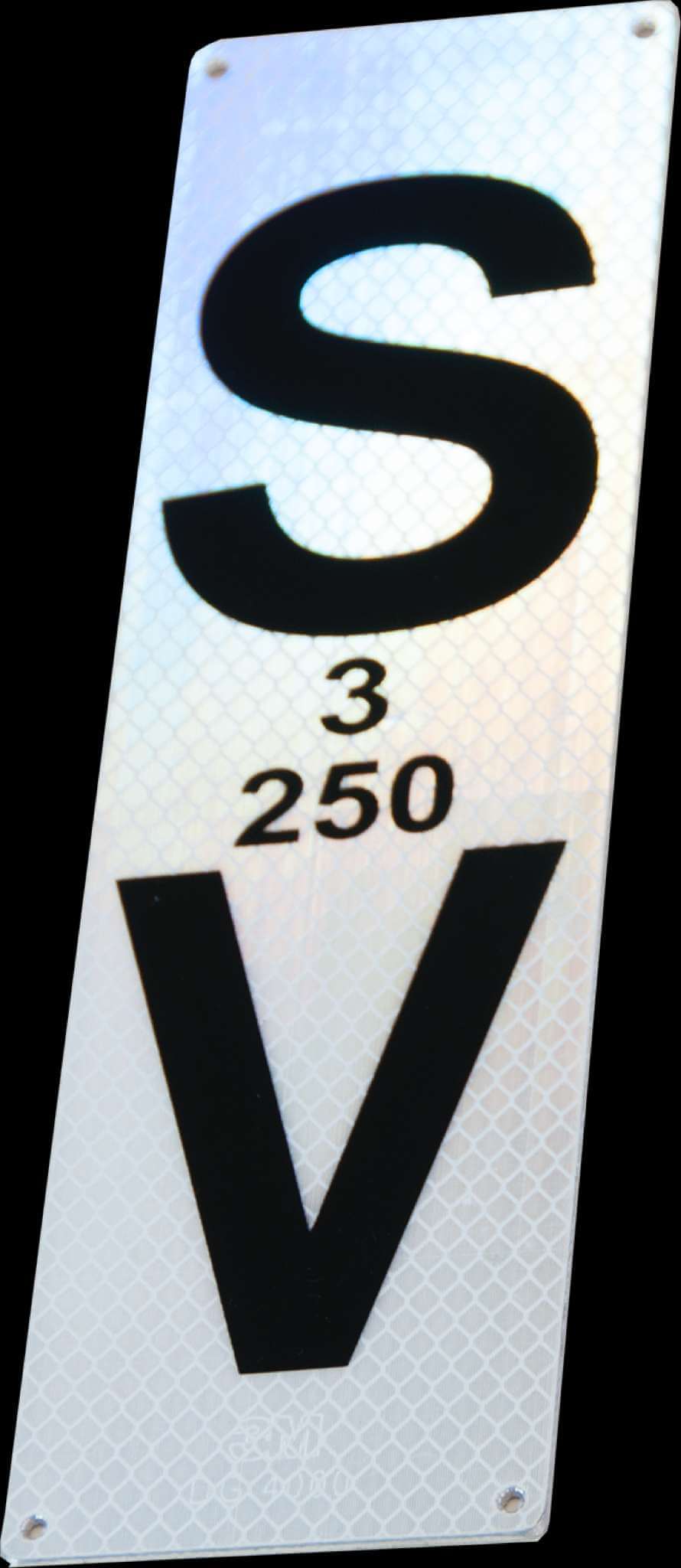

SVScour ValveMLMedium Level Main
SHSwabbing HydrantLLLow Level Main
VBValve Box

Steel Plate Sizes

As per SEQ Water Service Providers, Queensland Urban Utilities & various Councils)
• 250mm x 100mm x 2mm thick -4 x (3mm) cnr holes to suit pop rivets
• 250mm x 75mm x 2mm thick -4 x (3mm) cnr holes to suit pop rivets
• 150mm x 75mm x 2mm thick – 4 x (7mm) cnr holes to suit (6.5mm x 50mm Gal spikes)
• 125mm x 75mm x 2mm thicks – 4 x (3mm) cnr holes to suit pop rivets

Special Sizes Available On Request. Please contact us for further information or to request a quote.

Colour Codes
WhiteValves, Scour Valves, Swabbing Chambers, Air Valves
YellowHydrants, Flushing Points
RedClosed Zone / Boundary Valves
BlueDialysis Valves
Additional Codes for GCCC
GreenSmall DN By-Pass Valve
Red/WhiteBoundary Valve PMA / DMA
